1.1/2″ Swivel Towing Eye
Big Bale Stacker 1.5″ Replacement tow eye
1.5″ x 135 Chrome Pin
Big Bale Stacker Pin Chrome 1.5 x 135mm
1.5″ x 170 Chrome Pin
Big Bale Stacker Pin Chrome 1.5 x 170mm
2″ x 195mm Chrome Pin
Big Bale Stacker Pin 2″ x 195mm with Grease hole

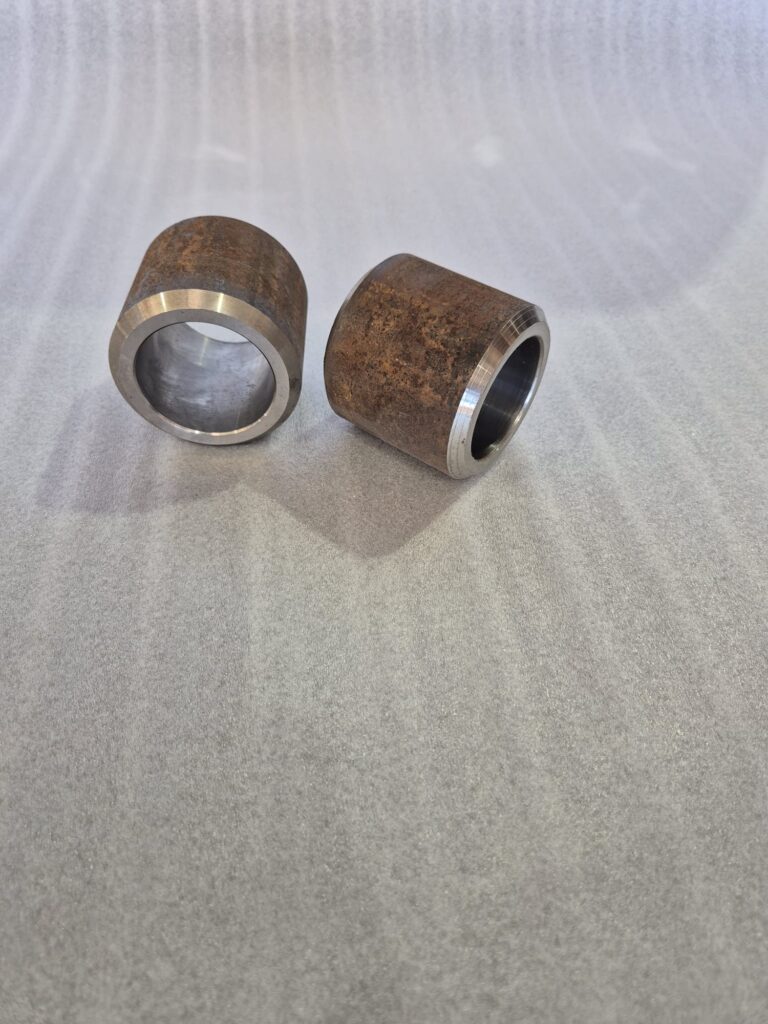

2″ x 72mm Inner Bush
Big Bale Stacker Front table Pivot Inner Bush 2″ x 72mm Weld in

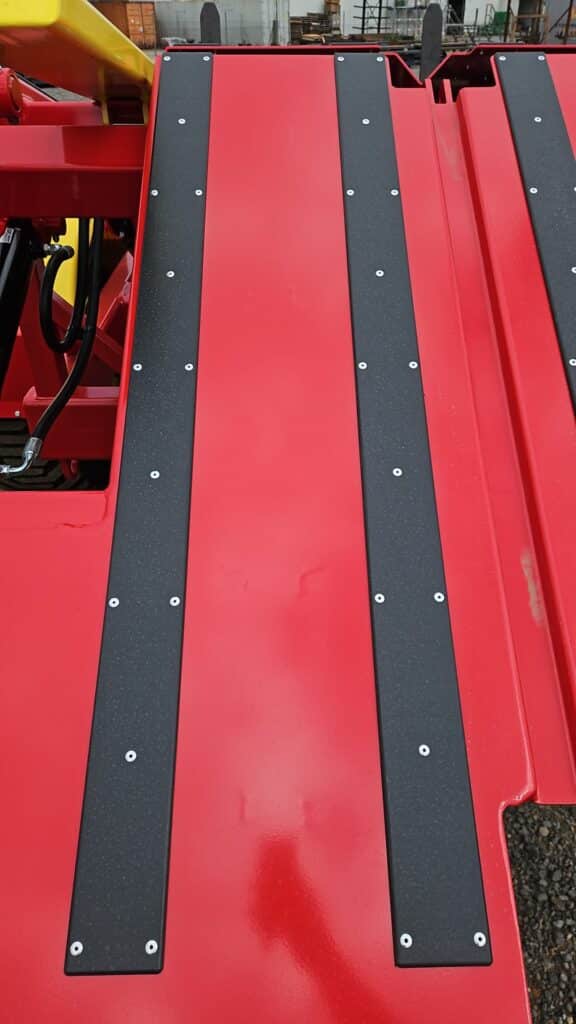

BBS Front Table Centre Plastic Slides
Front Table Centre Plastic Slides. Individual- 4 Required Per Machine, rivets included

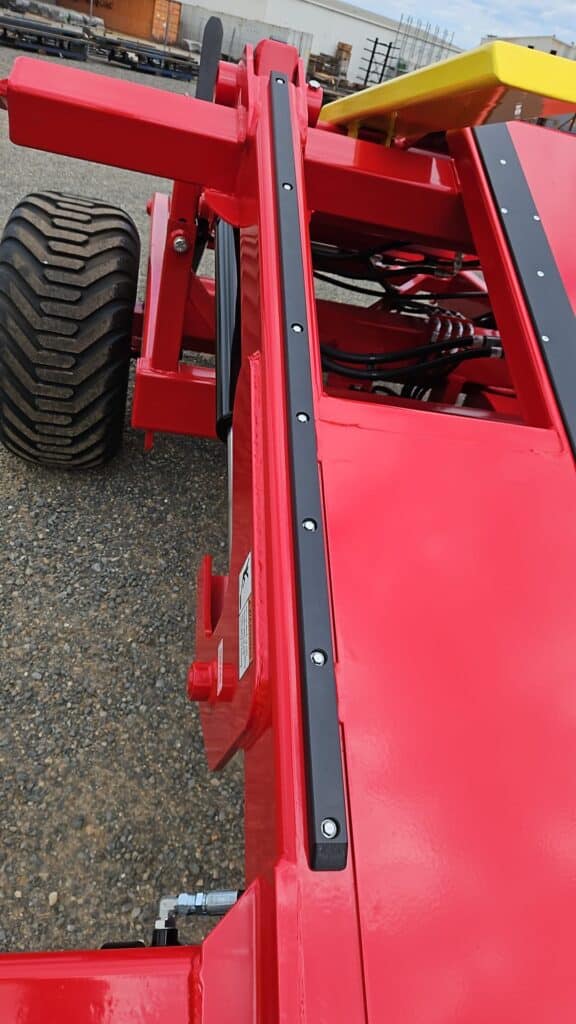

BBS Front Table Outer Plastic Slide
Front Table Outer Plastic Slides. Individual – 2 Required Per Machine, screws included

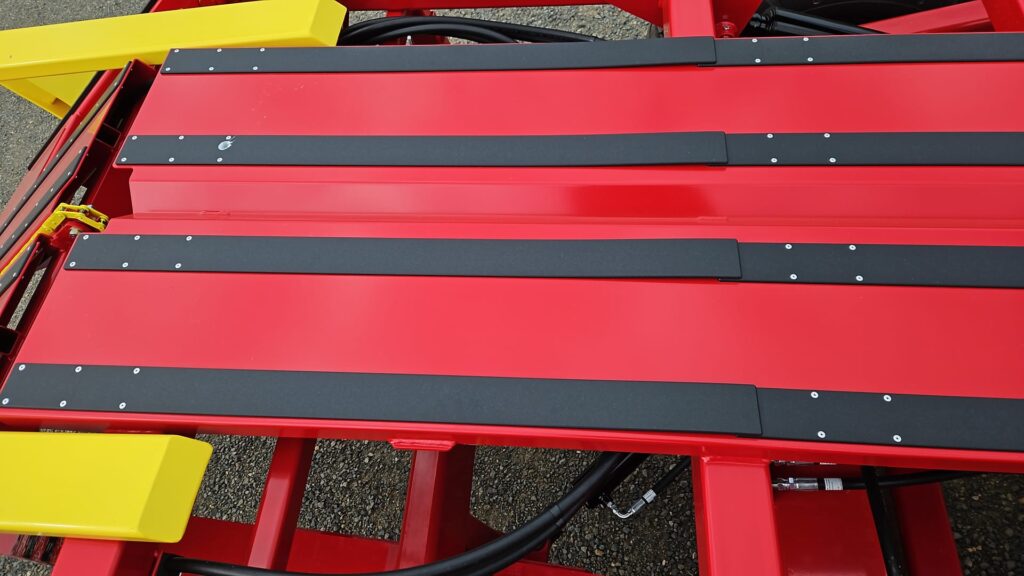

BBS Main Table Centre Plastic Slides
Main Table Centre Plastic Slides. Individual – 12 Required Per Machine, Rivets included
BBS Main Table Outer Front Plastic Slides
Main Table Outer Front Plastic Slides. Individual – 4 Required Per Machine- Screws included
BBS Main Table Outer Rear Plastic Slides
BBS Main Table Outer Rear Plastic Slides. Individual- 2 Required Per Machine- Screws Included
Big Bale Stacker 2″ Grab Arm Centre Weld Bush with Teflon Sleeves
Big Bale Stacker Grab Arm Pivot Inner Bush 2″ x 96mm Weld in. Comes with Teflon sleeves
Big Bale Stacker 4 Port Counter Balance Valve
4 Port Counter Balance Valve YEV. Complete assembly.
Big Bale Stacker ADR Hub Seal – suits ADR only
Big Bale Stacker ADR Replacement Wheel Hub Seal – suits ADR only
Big Bale Stacker Bale Counter
Tracks and displays total bales stacked, Can be retro-fitted or ordered with either of the Big Bale Stackers
Big Bale Stacker Complete Tongue 1.5″
Big Bale Stacker Complete Pull Assembly. Suit 1.5″ Pin
Big Bale Stacker Counter Balance Valve Cartridge
Big Bale Stacker Counter Balance Valve Single replacement Cartridge Only
Big Bale Stacker Drawbar Plastics Kit
Drawbar Plastics Kit includes top and bottom plastic slides and 2 plastic discs for pivot
Big Bale Stacker Drawbar Ram 3 x 14
Drawbar Ram 3 x 14, 1 Inch pins
Big Bale Stacker First Table Pin, Bush & Sleeve Kit
2 inch pin and bush replacement kit for pivot between main table and first table (For 1 side only). Comes with: 1 x Pin, 1 x Inner Bush, 1 x 40mm Outer Bush, 1 x 50mm Outer bush, 2 x Teflon Sleeves, bolt and nut
Big Bale Stacker First Table Ram 3 x 20
Big Bale Stacker First Table Cylinder 3 x 20 inch. Pins not included
Big Bale Stacker Forks – 122x40x1067 – Set of 2
Big Bale Stacker Replacement Forks – Set of 2. Class 2 Forklift fork 122x40x1067
Big Bale Stacker Grab Arm Pin/Bush & Sleeve Kit
2 Inch pin and bush replacement kit for pivot between Grab arm and first table (For 1 side only). Comes with: 1 x Pin, 1 x Inner Bush, 1 x 40mm Outer Bush, 1 x 50mm Outer bush, 2 x Teflon Sleeves, bolt and nut
Big Bale Stacker Grab Arm Ram – Large – Phasing Right
Right hand grab arm phasing Cylinder. Please note this is different to the left hand. Standing behind the machine looking forward, this is the arm on the right.
Big Bale Stacker Grab Arm Ram – Small – Phasing Left
Left hand grab arm phasing cylinder. Please note this is different to the right hand. Standing behind the machine looking forward, this is the arm on the left (closest to the drawbar).
Big Bale Stacker Hub Bearing Kit – Suits ADR ONLY, Includes inner and outer
Big Bale Stacker Hub Bearing Kit – Suits ADR ONLY, Includes inner and outer Bearing only (Seal Sold Seperately under JGB15079)
Big Bale Stacker Main Table Ram 4 x 36″
Main Table Cylinder 4 x 36 inch ram that lifts the main table for unloading. 2.5 inch bottom pin. 1.5 inch top pin. Both left and right are the same.
Big Bale Stacker Mudguard & Tail Light Set
Durable mudguards with integrated LED tail lights designed to protect the stacker and hay from debris while improving visibility and safety during transport and operation.
Big Bale Stacker Plastics Kit
Complete replacement plastics slide kit for both tables of the Big Bale Stacker
Big Bale Stacker Rim Only – Lemon Yellow
Big Bale Stacker Rim Only – Lemon Yellow (Not always stocked as a loose item)
Big Bale Stacker Sequence Valve Assembly – 6 Port
Big Bale Stacker Sequence valve complete assembly EIV.
Big Bale Stacker Sequence Valve Cartridge Only-RSDC-LAN
Sequence valve replacement cartridge only. RSDC-LAN (Check Part number matches)
Big Bale Stacker Sequence Valve Cartridge Only-SCCA-LAN
Sequence valve replacement cartridge only. SCCA-LAN (Check part number matches)
Big Bale Stacker Teflon Pivot Sleeve Only 2.0″ x 1.5″ Long
Big Bale Stacker Teflon Pivot Sleeve Only 2.0″ x 1.5″ Long
Big Bale Stacker Teflon Pivot Sleeve Only 2.0″ x 2″ Long
Big Bale Stacker Teflon Pivot Sleeve Only 2.0″ x 2″ Long
Big Bale Stacker Teflon Pivot Sleeve Only 2.5″ x 2″ Long
Big Bale Stacker Teflon Pivot Sleeve Only 2.5″ x 2″ Long
Big Bale Stacker Wet Bale Foot Switch Complete
Big Bale Stacker Wet Bale Foot Switch
Big Bale Stacker Wet Bale Kit
A simple chain system designed to assist in pushing the bale off the front table when moisture is present, ideal for handling bales in damp or high-humidity conditions.
Big Bale Stacker Wheel Complete
Big Bale Stacker Wheel Complete – Lemon Yellow. 500/60-22.5 on 16 x 22.5 Rim. 8/275 PCD
Chain Stabiliser Eye 22mm
Big Bale Stacker Grab Arm Stabiliser Turnbuckle
